Technical parameters and configuration table< Br/>
&Nbsp< Br/>
Machine Introduction:

&Nbsp& Nbsp; The SDSK 5Z model is a 5-axis drilling and tapping machine with a tool library specially designed for customers; Equipped with a straight blade magazine; There are sliding doors on both the front, back, left, and right sides; The motion mode is to move the Y-axis worktable forward and backward, the X-axis spindle moves left and right, and the 5Z-axis spindle can move up and down simultaneously, drilling and tapping teeth simultaneously, or moving up and down separately. The five spindles can clamp the same tool and process it simultaneously, greatly improving production efficiency; The body adopts top-notch Jinan granite (marble) structure, which never deforms; Taiwan's complete new generation system/servo motor/spindle drive; The 7-axis adopts imported Taiwan Shangyin/PMI/TBI precision linear guide, precision ball screw, precision coupling, power distribution cabinet thermostatic system, advanced spindle refrigeration system, automatic lubrication system, coolant circulating water spray and spray system, and air filtering device, which ensure higher processing accuracy, speed and stability& Nbsp; Especially suitable for precision 3D carving, milling, precision carving, cutting, drilling, tapping and other processing of various copper, aluminum, acrylic, plastic and other parts< Br/>
Applicable industries: processing of various types of radiators, plumbing equipment, shower sprays, valves, faucets, door and window handles, door locks, electrical case casings, mechanical parts, etc< Br/>
Install a fourth rotating shaft (note: quantity 4)& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp< Br/>
 < Br/>
Machine name: 5-head drilling machine with tool magazine

&Nbsp< Br/>

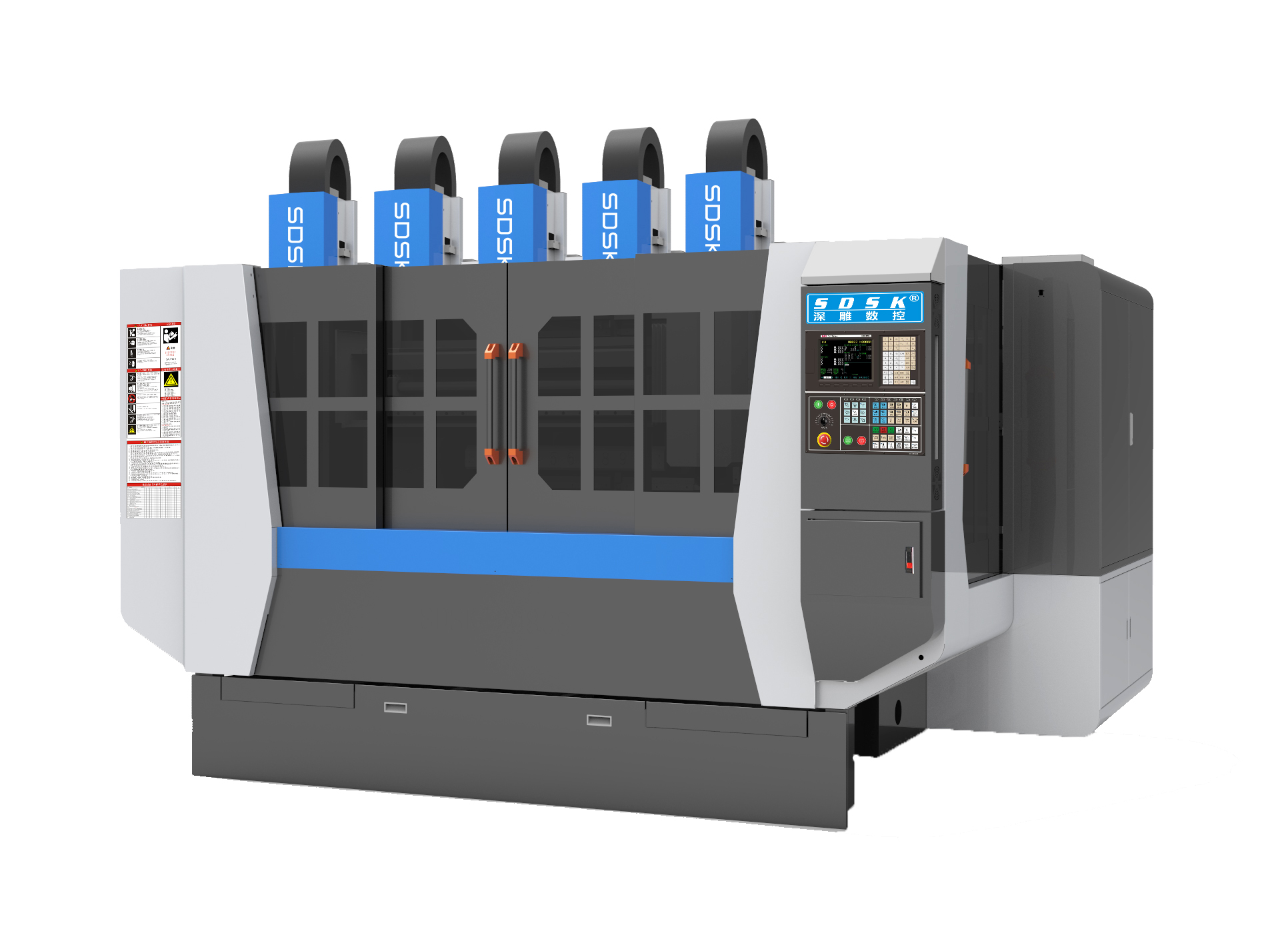

(The picture is for reference only, subject to the actual product, and a full cover may be added)

&Nbsp< Br/>
1、 Main Configuration List of the Machine: (Unit: mm)

Number
Regulations; Grid; Speak; bright
quantity
1.
Outer cover: 2mm steel plate, baked paint (stainless steel water tank)
1 set
2.
Marble body, marble crossbeam
1 set
3.
Used for X/Y/5Z axes; Taiwan Shangyin/PMI& Nbsp; Precision linear guide rail
full set
4.
Used for X/Y/5Z axes; Taiwan TBI/PMI& Nbsp; Precision ball screw
full set
5.
Taiwan's new generation CNC system (21GA/16 axis), new generation servo motor (with driver, 5Z with brake), new generation spindle drive (with encoder)
full set
6.
Schneider Electric Accessories
1 batch
7.
The optional options for the electric spindle parameter table are listed in Table 2
5
8.
Imported NSK; Precision grade angular contact paired bearings
full set
9.
Spindle water cooler
1 unit
10.
Electronic pulse handwheel (accuracy of 0.001mm)
1 set
11.
X/4Z axis with three proof cloth organ cover, Y-axis steel plate cover
1 set each
12.
X/Y/4Z axis plastic drag chain
1 set each
13.
Knife alignment instrument
2 sets
14.
Automatic lubrication oil pump 2 liters
set
15.
Gas filter
1 set
16.
Air water mixing spray, sprinkler
1 set each
17.
Heat exchanger constant temperature system
1 set
18.
Automatic slag removal, placed on the left and right sides below the workbench; (Optional)
2 sets
19.
Knife handle
10
20.
water pump
1 unit
21.
Machine tool accessories
1 set


2、 The optional options for the electric spindle parameter table are as follows:

Number
Regulations; Grid; Speak; bright
quantity
&Nbsp;
The optional options for the electric spindle parameter table are as follows:

1、 Spindle distance: 260mm, workbench size 1400 * 500

1. Electric spindle 30000 revolutions per minute/4.6KW/outer diameter 110mm/pneumatic tool change/with encoder/equipped with BT30 tool holder/can be equipped with a straight row tool library of 5 * 3 positions< Br/>
2. Electric spindle 40000 rpm/3.0KW/outer diameter 80mm/pneumatic tool change/with encoder/ Equipped with ISO20 tool holder/can be equipped with a straight row tool library of 5 * 4 positions< Br/>
3. Electric spindle 60000 revolutions per minute/2.5KW/outer diameter 62mm/pneumatic tool change/with encoder/equipped with ISO10 tool holder/can be equipped with a straight row tool library of 5 * 7 positions< Br/>
2、 Spindle distance: 280mm, workbench size 1400 * 500

1. Electric spindle 30000 revolutions per minute/4.6KW/outer diameter 110mm/pneumatic tool change/with encoder/equipped with BT30 tool holder/can be equipped with a straight row tool library of 5 * 3 positions< Br/>
2. Electric spindle 40000 rpm/3.0KW/outer diameter 80mm/pneumatic tool change/with encoder/ Equipped with ISO20 tool holder/can be equipped with a straight row tool library of 5 * 5 positions< Br/>
3. Electric spindle 60000 revolutions per minute/2.5KW/outer diameter 62mm/pneumatic tool change/with encoder/equipped with ISO10 tool holder/can be equipped with a straight row tool library of 5 * 7 positions< Br/>
3、 Spindle distance: 300mm, workbench size 1500 * 600

1. Electric spindle 30000 revolutions per minute/4.6KW/outer diameter 110mm/pneumatic tool change/with encoder/equipped with BT30 tool holder/can be equipped with a straight row tool library of 5 * 3 positions< Br/>
2. Electric spindle 40000 rpm/3.0KW/outer diameter 80mm/pneumatic tool change/with encoder/ Equipped with ISO20 tool holder/can be equipped with a straight row tool library of 5 * 5 positions< Br/>
3. Electric spindle 60000 revolutions per minute/2.5KW/outer diameter 62mm/pneumatic tool change/with encoder/equipped with ISO10 tool holder/can be equipped with a straight row tool library of 5 * 8 positions< Br/>
4、 Spindle distance: 340mm, workbench size 1700 * 800

1. Electric spindle 30000 revolutions per minute/4. 6KW/outer diameter 110mm/pneumatic tool change/with encoder/equipped with BT30 tool holder/can be equipped with a straight row tool library of 5 * 4 positions< Br/>
2. Electric spindle 40000 rpm/3.0KW/outer diameter 80mm/pneumatic tool change/with encoder/ Equipped with ISO20 tool holder/can be equipped with a straight row tool library of 5 * 6 positions< Br/>
3. Electric spindle 60000 revolutions per minute/2.5KW/outer diameter 62mm/pneumatic tool change/with encoder/equipped with ISO10 tool holder/can be equipped with a straight row tool library of 5 * 9 positions< Br/>
5、 Spindle distance: 400mm, workbench size 2000 * 800

1.  Electric spindle 30000 revolutions per minute/4.6KW/outer diameter 110mm/pneumatic tool change/with encoder/equipped with BT30 tool holder/can be equipped with a straight row tool library of 5 * 5 positions< Br/>
2.  Electric spindle 40000 rpm/3.0KW/outer diameter 80mm/pneumatic tool change/with encoder/ Equipped with ISO20 tool holder/can be equipped with a straight row tool library of 5 * 7 positions< Br/>
3.  Electric spindle 60000 revolutions per minute/2.5KW/outer diameter 62mm/pneumatic tool change/with encoder/equipped with ISO10 tool holder/can be equipped with a straight row tool library of 5 * 10 positions< Br/>
6、 Spindle distance: 500mm, workbench size 2500 * 800

1. Electric spindle 30000 revolutions per minute/4.6KW/outer diameter 110mm/pneumatic tool change/with encoder/equipped with BT30 tool holder/can be equipped with a straight row tool library of 5 * 6 positions< Br/>
2. Electric spindle 40000 rpm/3.0KW/outer diameter 80mm/pneumatic tool change/with encoder/ Equipped with ISO20 tool holder/can be equipped with a straight row tool library of 5 * 9 positions< Br/>
3. Electric spindle 60000 revolutions per minute/2.5KW/outer diameter 62mm/pneumatic tool change/with encoder/equipped with ISO10 tool holder/can be equipped with a straight row tool library of 5 * 13 positions.
&Nbsp< Br/>
&Nbsp< Br/>
&Nbsp< Br/>
&Nbsp< Br/>
&Nbsp< Br/>
&Nbsp< Br/>
&Nbsp< Br/>
&Nbsp< Br/>
&Nbsp< Br/>
&Nbsp< Br/>
&Nbsp< Br/>
5


3、 Main technical parameters of the equipment: (unit: mm)

model
SDSK260-5Z
SDSK280-5Z
SDSK300-5Z
SDSK340-5Z
SDSK400-5Z
SDSK500-5Z
External dimensions
2630 in length, 2130 in width, and 2300 in height
2630 in length, 2130 in width, and 2300 in height
2750 in length, 2330 in width, and 2300 in height
3100 in length, 2600 in width, and 2700 in height
3400 in length, 2600 in width, and 2700 in height
3900 in length, 2600 in width, and 2700 in height
Aluminum workbench dimensions
1300 * 800 * 50 (with T-groove)
1400 * 500 * 50 (with T-groove)
1500 * 600 * 50 (with T-groove)
1700 * 800 * 50 (with T-groove)
2000 * 800 * 50 (with T-groove)
2500 * 800 * 50 (with T-groove)
X/Y/Z stroke
450 * 530 * 300
450 * 530 * 300
450 * 630 * 300
500 * 830 * 350
550 * 830 * 350
650 * 830 * 350
Maximum air travel speed
30000mm/min
30000mm/min
30000mm/min
30000mm/min
30000mm/min
30000mm/min
Maximum processing speed
12000mm/min
12000mm/min
12000mm/min
12000mm/min
12000mm/min
12000mm/min
control system
Taiwan's new generation CNC system
Taiwan's new generation CNC system
Taiwan's new generation CNC system
Taiwan's new generation CNC system
Taiwan's new generation CNC system
Taiwan's new generation CNC system
servo system
AC servo
AC servo
AC servo
AC servo
AC servo
AC servo
System resolution
zero point zero zero one
zero point zero zero one
zero point zero zero one
zero point zero zero one
zero point zero zero one
zero point zero zero one
Three axis verticality
0.015mm
0.015mm
0.015mm
0.015mm
0.015mm
0.015mm
Whole machine positioning accuracy
0.015mm
0.015mm
0.015mm
0.015mm
0.015mm
0.015mm
Localization accuracy
Precision within 300mm ± 0.01mm
Precision within 300mm ± 0.01mm
Precision within 300mm ± 0.01mm
Precision within 300mm ± 0.01mm
Precision within 300mm ± 0.01mm
Precision within 300mm ± 0.01mm
Repetitive positioning accuracy
0.005mm
0.005mm
0.005mm
0.005mm
0.005mm
0.005mm
Number of spindles
5 & Nbsp; (Main spindle distance 260mm)
5 & Nbsp; (Spindle distance 280mm)
5 & Nbsp; (Main axis distance 300mm)
5 & Nbsp; (Main spindle distance 340mm)
5 & Nbsp; (Main spindle distance 400mm)
5 & Nbsp; (Spindle distance 500mm)
Electric spindle power
4.6KW/piece< Br/>
(Optional according to parameter table)
4.6KW/piece< Br/>
(Optional according to parameter table)
4.6KW/piece< Br/>
(Optional according to parameter table)
4.6KW/piece< Br/>
(Optional according to parameter table)
4.6KW/piece

(Optional according to parameter table)
four. 6KW/piece< Br/>
(Optional according to parameter table)
Straight row tool magazine
5 * 3 digits
5 * 3 digits
5 * 3 digits
5 * 4 digits
5 * 5 digits
5 * 6 digits
Knife changing method
automatic
automatic
automatic
automatic
automatic
automatic
Spindle speed
30000rpm/min
30000rpm/min
30000rpm/min
30000rpm/min
30000rpm/min
30000rpm/min
Clamping tool handle
BT30 (maximum 12mm)
BT30 (maximum 12mm)
BT30 (maximum 12mm)
BT30 (maximum 12mm)
BT30 (maximum 12mm)
BT30 (maximum 12mm)
Knife alignment method
automatic
automatic
automatic
automatic
automatic
automatic
Loading height
250mm
250mm
250mm
250mm
250mm
250mm
The countertop bears a load
500Kg
500Kg
500Kg
500Kg
500Kg
500Kg
Rated voltage
380V/50HZ
380V/50HZ
380V/50HZ
380V/50HZ
380V/50HZ
380V/50HZ
Maximum power of the entire machine
30KW
30KW
30KW
30KW
30KW
30KW
Overall weight
4500Kg
3200Kg
3500Kg
5800Kg
6200Kg
7000Kg
