Machine Introduction:

The SDSK2515S model is a large glass carving machine specially designed for doors for customers; The motion mode is to move the Y-axis workbench forward and backward, the X-axis spindle moves left and right, and the Z-axis spindle moves up and down. The body adopts top-notch Jinan granite (marble) structure, which never deforms; The three-axis adopts imported Taiwan Shangyin/PMI precision grade linear guide rail, grinding grade ball screw, precision grade coupling, Weizhi/Yaskawa/Huichuan/Panasonic servo motor, distribution cabinet constant temperature system, advanced spindle refrigeration system, automatic lubrication system, coolant multi-point water spray system, and air filtration device, ensuring higher processing accuracy, speed, and stability; Specially suitable for precision punching, edge grinding, chamfering, and irregular processing of capacitive screen glass panels, various thin glass panels, etc< Br/>


&Nbsp< Br/>
&Nbsp< Br/>

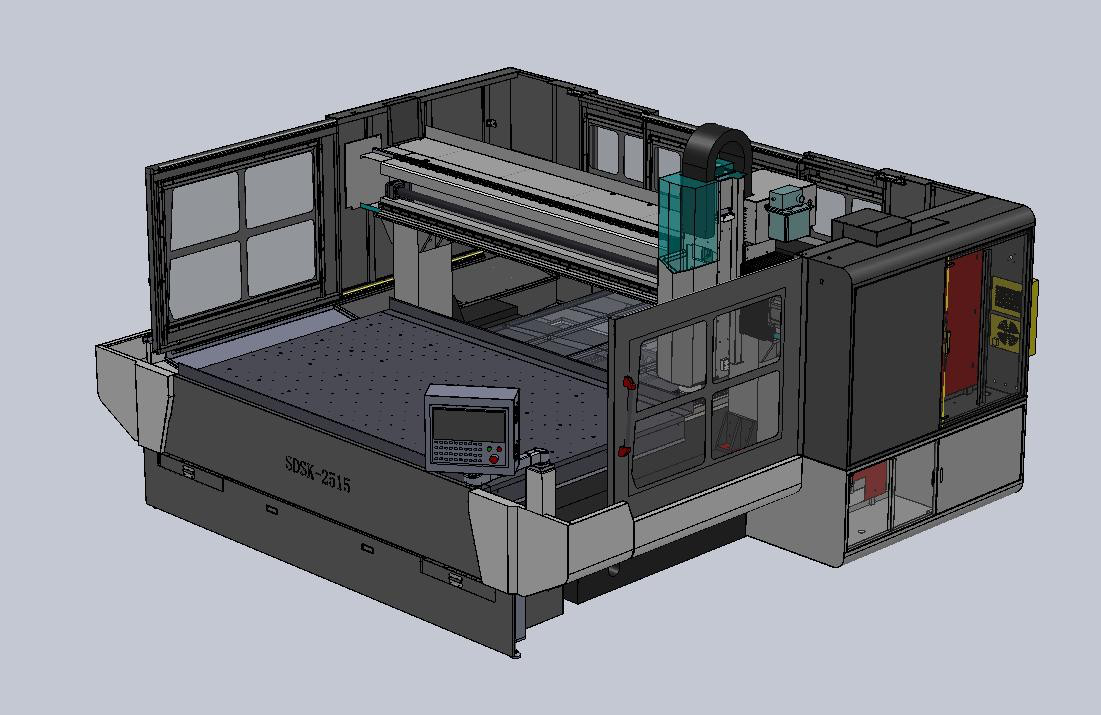

(The pictures are for reference only, subject to the actual product)
List of Main Machine Configuration (Unit: mm)

Number
Specification Description
quantity
one
Outer cover: 2mm steel plate, baked paint (stainless steel water tank)
1 set
two
Aluminum workbench size: 2500 in X direction, 1500 in Y direction, thickness 50
1 set
three
Marble body, marble crossbeam
1 set
four
XYZ axis uses Yaskawa/Huichuan/Panasonic servo motors (optional)
4 sets
five
XYZ  Axis; THK/Shangyin or Intime/THK precision linear guide rail (optional)
8 sets
six
Use  for XYZ axis; Shangyin or Yintai precision ball screw
4 sets
seven
Deep carving CNC system/Weihong/New generation (optional)
1 set
eight
inverter
1 set
nine
Schneider Electric Accessories
1 batch
ten
Electric spindle 30000rpm, 7.5KW, pneumatic tool change, BT30 tool holder
1 unit
eleven
Import; NSK P-grade angular contact paired bearings
6 sets
twelve
Spindle oil cooler
1 unit
thirteen
Knife alignment instrument
1 set
fourteen
Electronic pulse handwheel (accuracy of 0.001mm)
1 set
fifteen
X/Y/Z axis with three proof cloth organ cover (Y stainless steel water deflector)
1 set each
sixteen
X/Y/Z axis plastic drag chain
1 set each
seventeen
Automatic lubrication oil pump 2 liters
1 set
eighteen
Gas filter
2 sets
nineteen
Multipoint sprinkler system
1 set


twenty
Electric control box constant temperature system
1 set
twenty-one
Vacuum adsorption fixture
4 sets
twenty-two
Toolbox and machine tool accessories
1 set
twenty-three
Equipped with automatic vacuum drainage system
1 set
&Nbsp< Br/>
Main technical parameters of the equipment:

model
SDSK2515S
External dimensions
Width 4100, length 3500, height 2500
X/Y/Z stroke
2530 * 1530 * 250
Maximum air travel speed
30000mm/min
Maximum processing speed
1200mm/min
control system
Deep carving CNC system
servo system
AC servo
System resolution
zero point zero zero one
Three axis verticality
0.015mm
Whole machine positioning accuracy
0.025mm
Localization accuracy
Precision within 300mm ± 0.01mm
Repetitive positioning accuracy
0.002mm
Spindle power
7.5KW
Knife changing method
Pneumatic
Spindle speed
30000rpm/min
Clamping tool handle
BT30 (maximum 12mm)
Loading height
150mm
The countertop bears a load
500Kg
Rated voltage
380V/50HZ
Maximum power of the entire machine
15KW
Overall weight
12000Kg
