Vertical Line Rail Machining Center;
&Nbsp; SD-V8
&Nbsp;
Technology

Surgery

Regulations

Grid

Books;
&Nbsp< Br/>
Shenzhen Jingdiao CNC Equipment Co., Ltd
Address: Buildings 29, 30, and 31, Third Industrial Zone, Xitian Community, Gongming Street, Guangming District, Shenzhen

Telephone: 0755-29423909, 0755-29588251

Mobile: 13924586646 Zhou Sheng (same WeChat account)

Tiktok number: SDSK20211688

Email: sz_jdsk@163.com &Nbsp< Br/>
Company website: www.cncjdj. com< Br/>
Official website of Aluminum Profile Processing Center: www.szjdsk. cn< Br/>
New Energy Vehicle Parts Network: www.sdskcnc. cn< Br/>

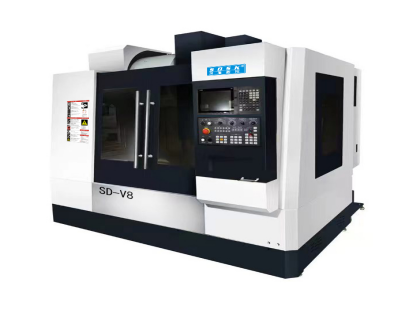

1、 Introduction to Machine Images:& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp< Br/>
&Nbsp& Nbsp;







(Similar image, subject to actual product)

&Nbsp< Br/>
2、 List of Main Machine Configuration (Unit: mm)
Regulations; Grid; Speak; bright
quantity
Origin
Mitsubishi System (M80)
full set
Japan
Use Taiwan Shangyin/Intime for XYZ axis/ THK; Precision grade roller rail (XYZ35)
full set
Taiwan, Japan
Use Taiwan Shangyin/Intime/THK for XYZ axis& Nbsp; Precision grinding ball screw (XYZ3616)
full set
Taiwan, Japan
Taiwan Ruiying/Speedcn Direct Connection Short Nose Spindle BT40/155/12000rpm
1 unit
Taiwan
24 bit disc cutter library (Yitai)
1 set
Taiwan
Cast iron bed body (HT300)
1 set
self-control
Cast iron mechanical parts (HT300)
1 batch
self-control
Distribution cabinet constant temperature air conditioning system (Red)
1 set
Dongguan
Schneider Electrical Accessories (Schneider)
1 batch
Tianjin
Pneumatic components (Yadeke)
1 batch
Taiwan
Imported SKF (SKF) bearings from Sweden
full set
Japan
Spindle water cooler (Reid)
1 unit
Dongguan
Electronic handwheel (Dongce)
1 set
Guangzhou
Knife alignment instrument
1 unit
self-control
XYZ axis with expandable steel plate cover
1 set each
self-control
X/Y/Z axis plastic drag chain (Dingtai)
1 set each
Dongguan
Automatic lubrication oil pump (Proton)
1 set
Dongguan
Air filter (Japanese Lehman M107-A air filter)
1 set
Zhejiang
Water spray device
2 sets
self-control
Water pump 750W
1 set
Changzhou
Machine tool accessories
1 set
Shenzhen
BT40 Knife Handle/Complete Set of Reduced Nipple (Three in One)
5
Shenzhen
Chain plate slag discharge machine (optional)
nothing
self-control
Four axis turntable (optional)
nothing
Taiwan


3、 Technical specification parameter table: (unit: mm)
model
SD-V8
Workbench size
1000 * 500& Nbsp; (18T * 5 * 80)
Spindle nose end to workbench
Max 670~Min 120
X-axis travel
eight hundred
Travel Y-axis
five hundred
Z-axis travel
five hundred and fifty
X/Y/Z fastest movement speed
X48 meters per minute

Y48 meters/minute

Z48 meters/minute
Maximum processing speed
12 meters per minute
servo system
AC servo
System resolution
zero point zero zero one
Three axis verticality
0.015mm
Whole machine positioning accuracy
&Plusmn; 0.01mm
Localization accuracy
Within 300± 0.008mm
Repetitive positioning accuracy
0.005mm
Number of spindles
1
Spindle servo power
11KW
Spindle servo torque
52.5Nm/piece
Spindle speed
12000 rpm/min
Disk cutter magazine
24 bit
Knife changing method
automatic
Clamping tool handle
BT40
Knife alignment method
automatic
The countertop bears a load
450Kg
Rated voltage
380V/50HZ
Maximum power of the entire machine
16KW
Overall weight
About 3100kg

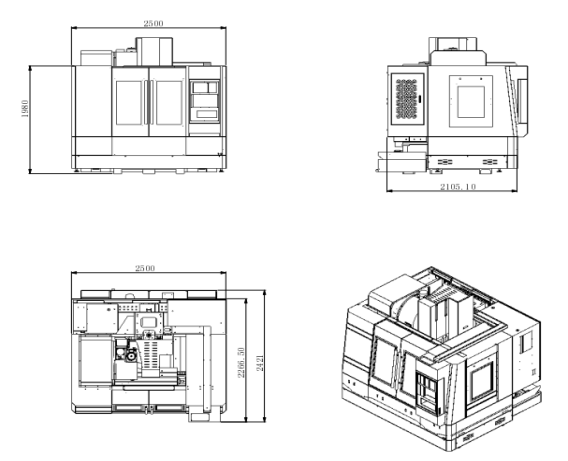

External dimensions (length * width * height)
Approximately 2420 * 2500 * 2600


3、 Standard configuration and accessories for the host:
one
Controller;
eleven
1 mechanical, electrical, and operation manual
two
Direct spindle BT40-155-12000;
twelve
Rigid tapping function
three
Automatic lubrication system
thirteen
Electrical box air conditioning
four
Adjustable foundation cushion block
fourteen
Operation Manual, Program Manual, and User Manual
five
Toolbox
fifteen
5 BT40 blade heads (including rivets and wrenches)
six
Work lights
sixteen
BT40 locking tool holder
seven
Warning lights
seventeen
&Nbsp; M16 Ma Tie
eight
Spindle blowing device
eighteen
One 6-inch screwdriver
nine
Transmission line
nineteen
Lock Mouth; ER32 (4-20)  1 set
ten
Fully enclosed cover
twenty
