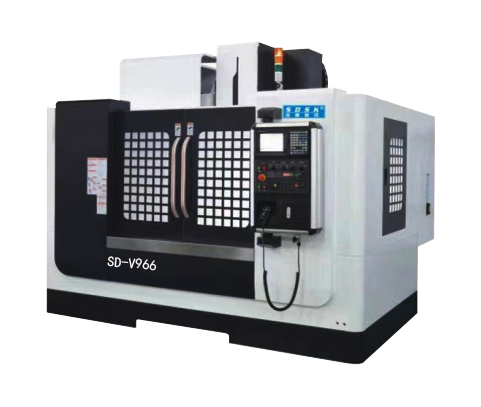

Vertical Line Rail Machining Center; SD-V966









1、 List of Main Machine Configuration (Unit: mm)
Regulations; Grid; Speak; bright
quantity
Origin
Mitsubishi System (M80)
full set
Japan
Use Taiwan Shangyin/Intime for XYZ axis; Precision grade roller linear guide (XYZ45)
full set
Taiwan
Use Taiwan Shangyin/Intime for XYZ axis; Precision grinding ball screw (XYZ4012)
full set
Taiwan
Taiwan Ruiying/Speedcn Direct Connection Short Nose Spindle BT40/155/12000rpm
1 unit
Taiwan
24 bit disc cutter library (Yitai)
1 set
Taiwan
Z-axis counterweight: nitrogen cylinder counterweight
1 set
Dongguan
Cast iron bed body (HT300)
1 set
self-control
Cast iron mechanical parts (HT300)
1 batch
self-control
Distribution cabinet constant temperature air conditioning system (Red)
1 set
Dongguan
Schneider Electrical Accessories (Schneider)
1 batch
Tianjin
Pneumatic components (Yadeke)
1 batch
Taiwan
Imported SKF (SKF) bearings from Sweden
full set
Japan
Spindle water cooler (Reid)
1 unit
Dongguan
Electronic handwheel (Dongce)
1 set
Guangzhou
Knife alignment instrument
1 unit
self-control
XYZ axis with expandable steel plate cover
1 set each
self-control
X/Y/Z axis plastic drag chain (Dingtai)
1 set each
Dongguan
Automatic lubrication oil pump (Proton)
1 set
Dongguan
Air filter (Japanese Lehman M107-A air filter)
1 set
Zhejiang
Water spray device
2 sets
self-control
Water pump 750W
1 set
Changzhou
Machine tool accessories
1 set
Shenzhen
BT40 Knife Handle/Complete Set of Reduced Nipple (Three in One)
5
Shenzhen
Chain plate slag discharge machine (optional)
nothing
self-control
Four axis turntable (optional)
nothing
Taiwan


3、 Technical specification parameter table: (unit: mm)
model
SD-V966
Workbench size
1000 * 550; (18T * 5 * 100)
Spindle nose end to workbench
Maximum 640 to minimum 40
X-axis travel
nine hundred
Travel Y-axis
six hundred
Z-axis travel
six hundred
X/Y/Z fastest movement speed
X36 meters/minute

Y36 meters/minute

Z24 meters/minute
Maximum processing speed
12 meters per minute
servo system
AC servo
System resolution
zero point zero zero one
Three axis verticality
0.015mm
Whole machine positioning accuracy
&Plusmn; 0.01mm
Localization accuracy
Within 300± 0.008mm
Repetitive positioning accuracy
0.005mm
Number of spindles
1 unit
Spindle servo power
11KW
Spindle servo torque
52.5Nm/piece
Spindle speed
12000 rpm/min
Disk cutter magazine
24 bit
Knife changing method
automatic
Clamping tool handle
BT40
Knife alignment method
automatic
The countertop bears a load
600Kg
Rated voltage
380V/50HZ
Maximum power of the entire machine
18KW
Overall weight
About 3700kg
External dimensions (length * width * height)
Approximately 2150 * 2550 * 2600


2、 Standard configuration and accessories for the host:
one
Controller;
eleven
1 mechanical, electrical, and operation manual
two
Directly connected spindle BT40-155-12000
twelve
Rigid tapping function
three
Automatic lubrication system
thirteen
Electrical box air conditioning
four
Adjustable foundation cushion block
fourteen
Operation Manual, Program Manual, and User Manual
five
Toolbox
fifteen
5 BT40 blade heads (including rivets and wrenches)
six
Work lights
sixteen
BT40 locking tool holder
seven
Warning lights
seventeen
&Nbsp; M16 Ma Tie
eight
Spindle blowing device
eighteen
One 6-inch screwdriver
nine
Transmission line
nineteen
Lock Mouth; ER32 (4-20)  1 set
ten
Fully enclosed cover
twenty
Shield
&Nbsp< Br/>
3、 Machine environment and hardware facility requirements;
Number
Environmental projects
Project Requirements Standards
one
Power requirements
AC380V (4P) 50-60Hz, air switch 100A, power supply voltage fluctuation range 380V± Within 10%
two
Air compressor
Using screw compressor, air storage tank, three-stage filtration,≥ 0.55Mpa, flow rate≥ 100L/min
three
Vacuum pressure
&Ge; 0.6 MPa
four
Air dryer
Must have an air dryer with automatic drainage function
five
Environmental noise/vibration
&Le; 75dba
six
Ground requirements
The ground is required to be flat, stable, and the difference between the highest and lowest points should not exceed 5mm
7.

eight
Environmental humidity
Suggest 45% -65%
Gas moisture content
No moisture
